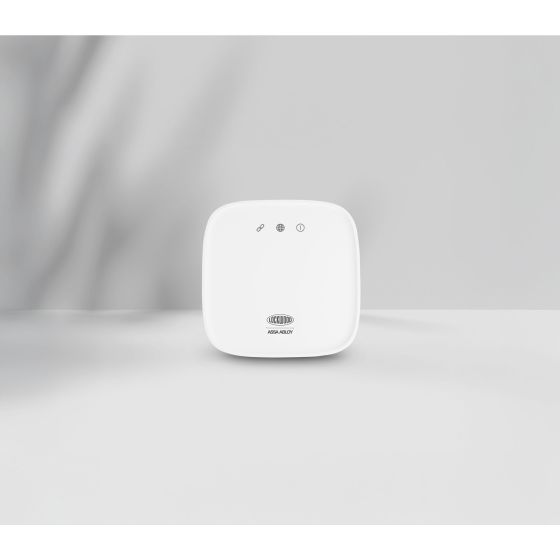

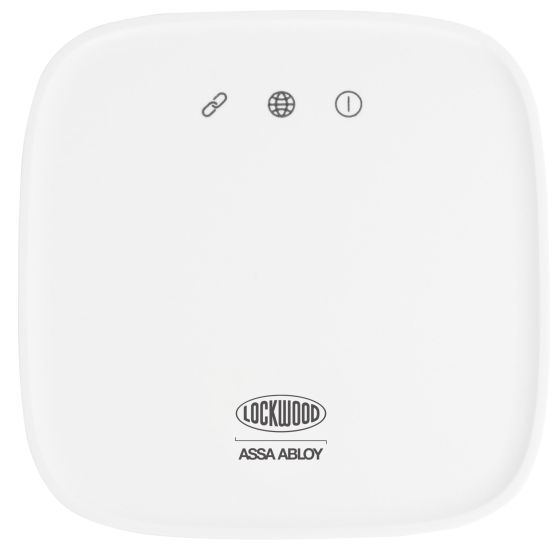

The Lockwood Home Hub is the central connection point for Lockwood and Yale smart locks, providing remote access and voice-assistant control from anywhere through the Lockwood Home / Yale Home App.

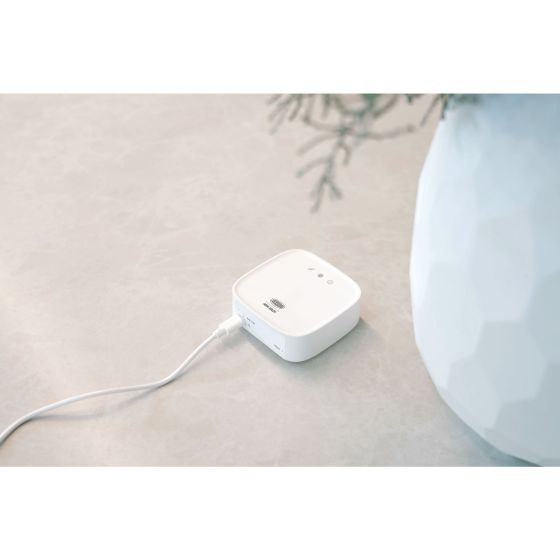

A compact indoor unit measuring 80 x 29 x 28mm, it powers from a USB-C mains adaptor and links smart devices over Wi-Fi, Zigbee and Bluetooth.
Features and Specifications
- Function: enables away-from-home remote access and voice-assistant control for the Lockwood and Yale smart range, including the "Work With" features on locks such as the Latitude Slim and Lume.
- Connectivity: communicates over Wi-Fi 2.4GHz, Zigbee and Bluetooth V4.2.
- Capacity: supports up to 16 Bluetooth and 30 Zigbee smart-home devices.
- Compatibility: works with Lockwood and Yale smart locks (including Latitude Slim, Lume, 001Touch Plus and the SDL Leverset and Deadbolt) and Yale Aeron and Smart Window Actuators via SyncPath technology.
- Power: mains powered through a 5 VDC/1.0A USB-C adaptor; indoor use only.
- Dimensions: 80mm high x 29mm wide x 28mm deep.
- Operating conditions: 0 to 60 degrees Celsius for the hub (0 to 40 for the adaptor), 10 to 90 percent non-condensing humidity.
- Compliance: carries the Regulatory Compliance Mark (RCM) for Australia and New Zealand and is a ZigBee member.
